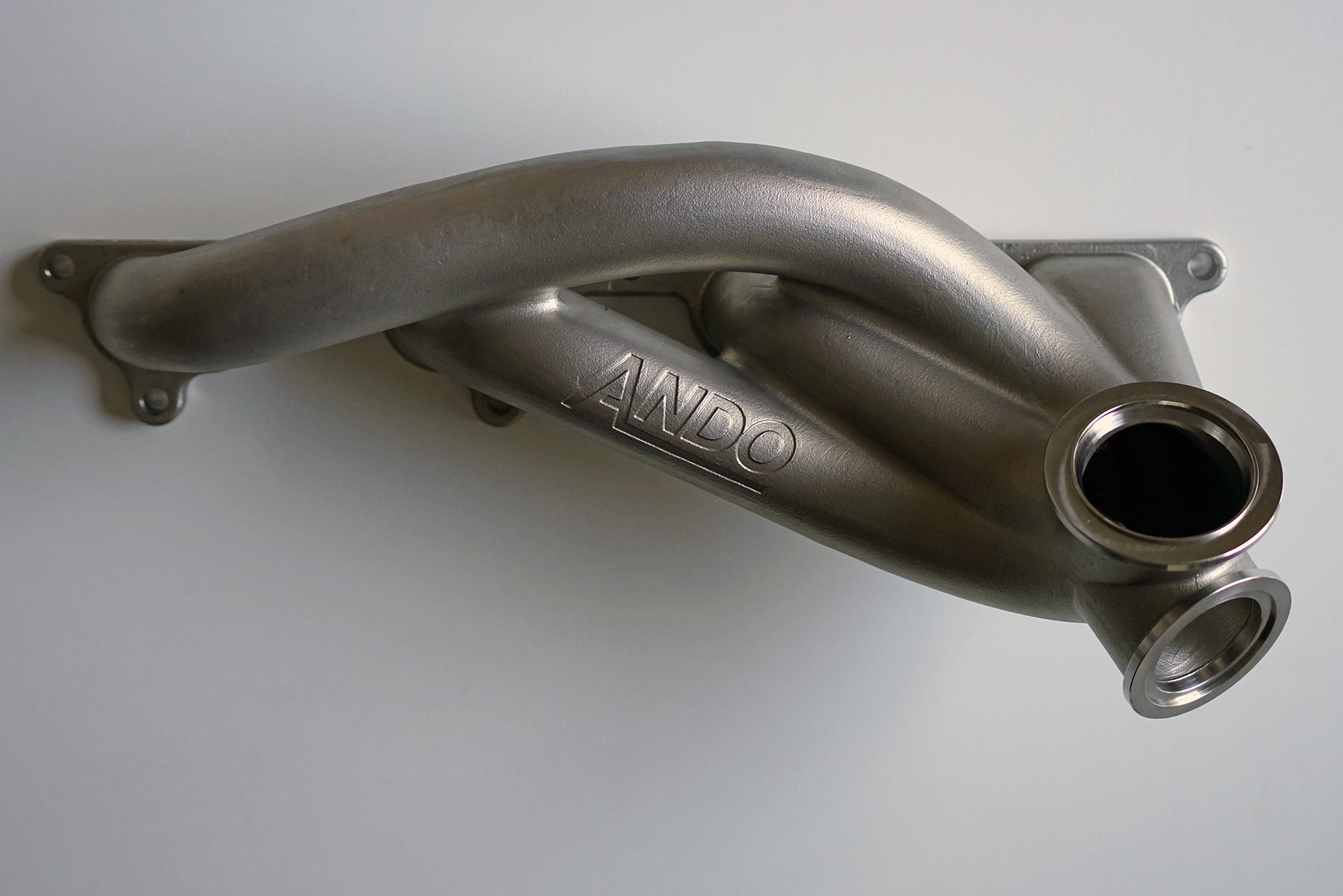

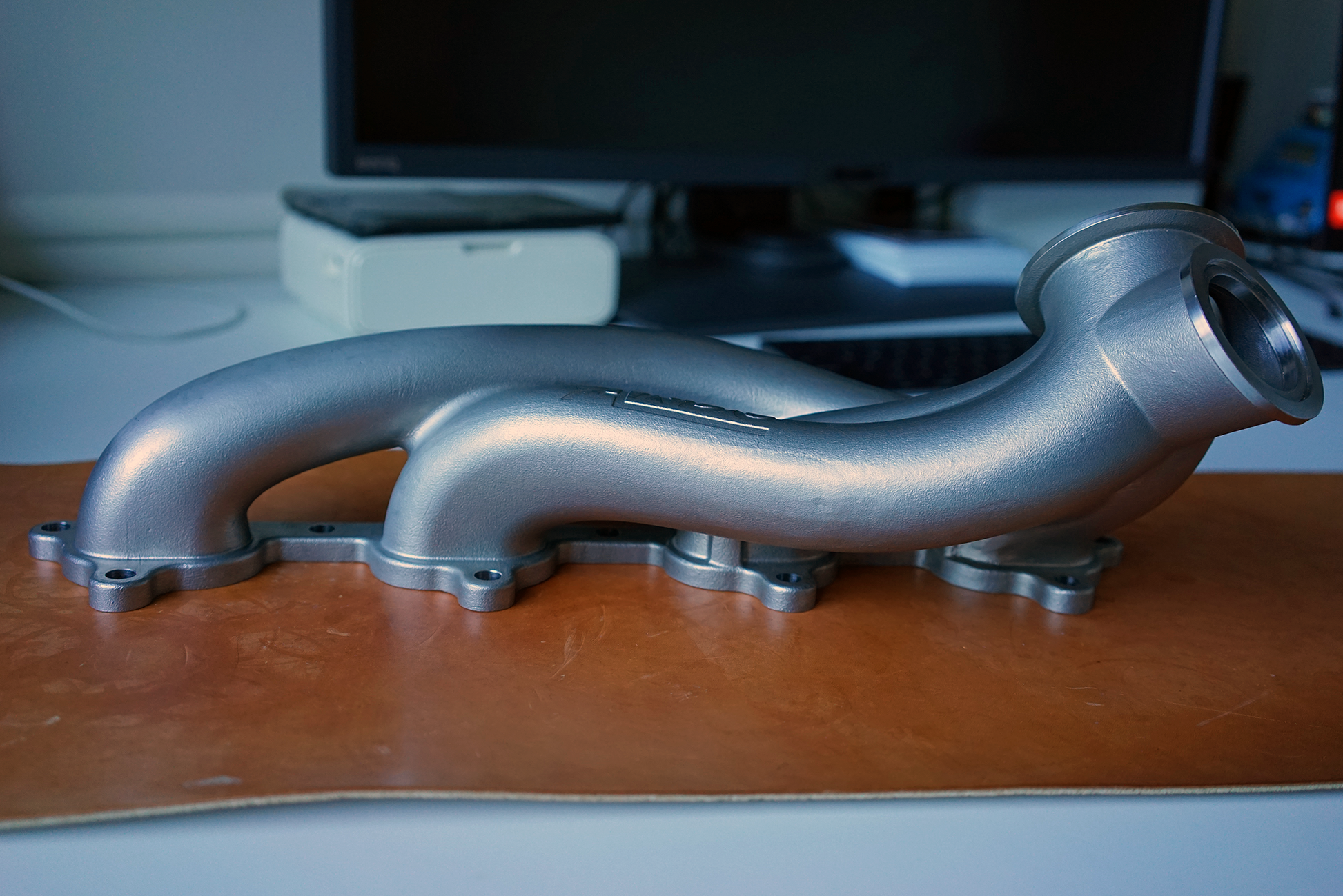

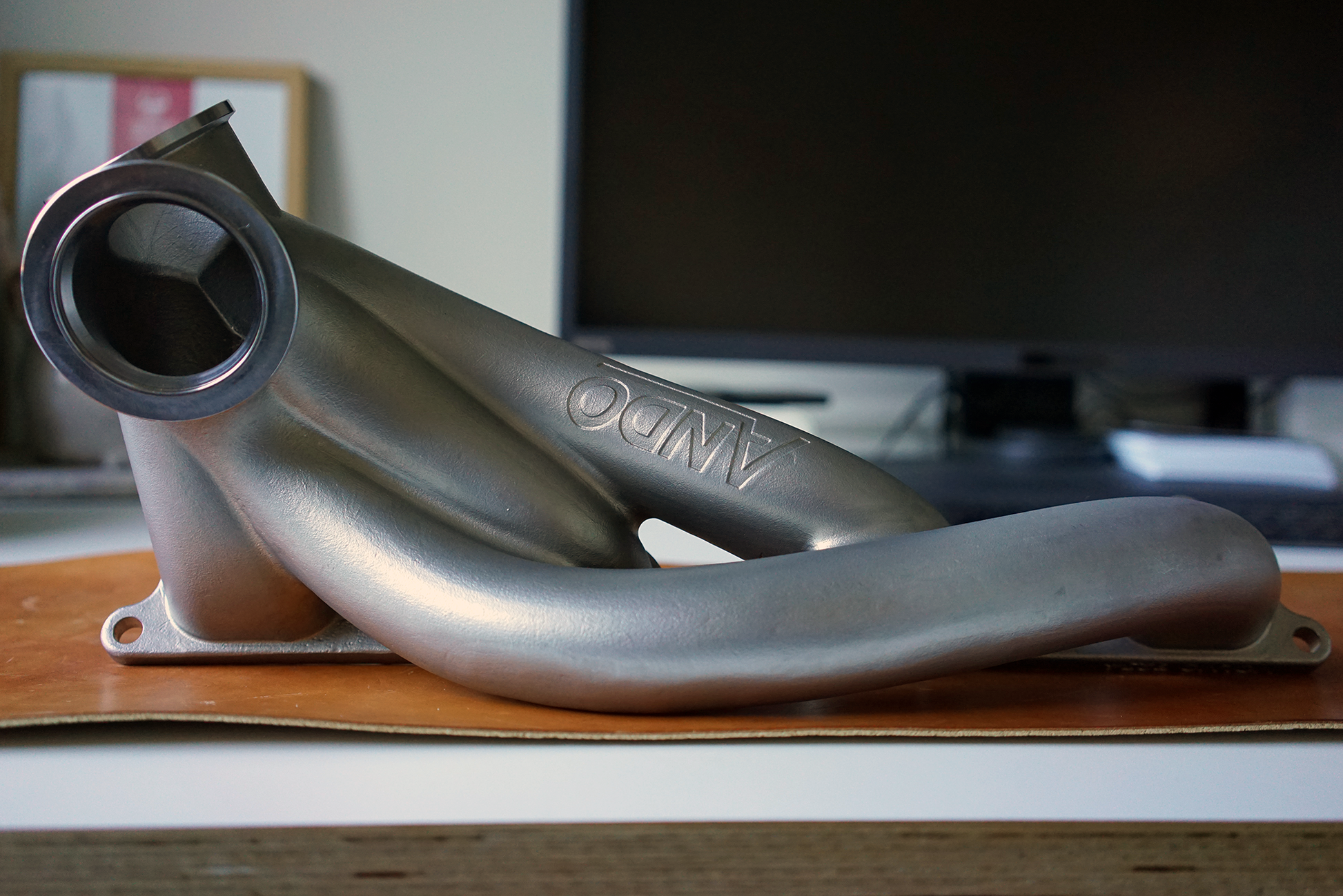

Volvo 16V Exhaust Manifold

2 Years in the Making

Over two years of development and testing, we are in final production only a few weeks left  untill our first batch is ready to ship. Engineered from the ground up with real-world fitment and excellent manufacturing tolerance confirmed, this manifold is a product of precision and performance.

Join our waitlist to stay updated on availability.

Material Quality

• Constructed from high-quality 347 stainless steel, offering exceptional resistance to heat, corrosion, and thermal fatigue.
• Stabilized with niobium to reduce the risk of cracking ensuring long-term durability.
• Easily weldable for future modifications to wastegate or turbo flanges, adapting to evolving performance needs.

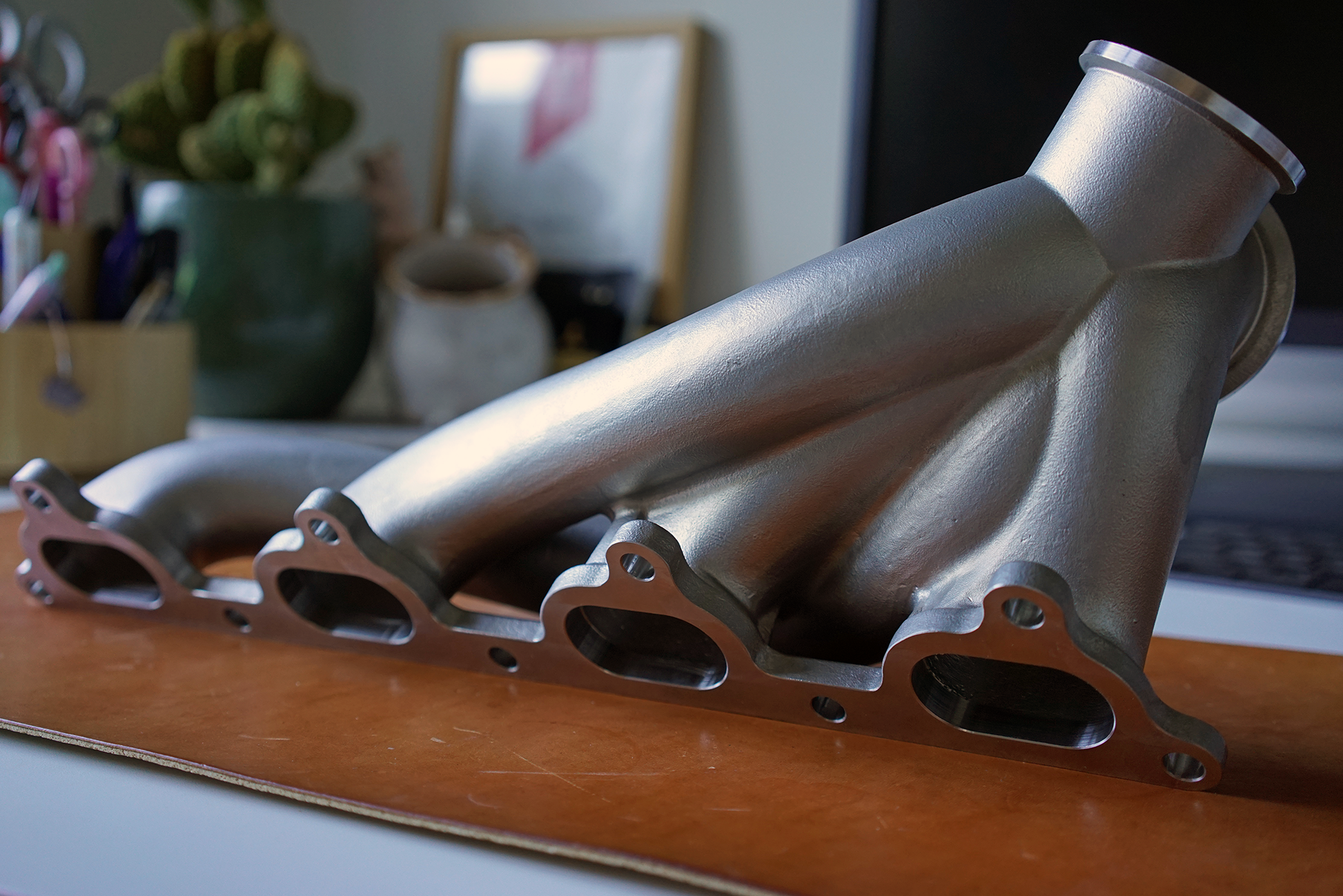

Designed for Optimal Flow and Firing Order

• Optimized for the Volvo redblock firing order, ensuring exhaust pulses merge into the turbo with minimal interuptions from the previous firing cylinder.
• Promotes even scavenging and balanced air-fuel ratios, resulting in smoother, more reliable engine operation.
• Internal runner sized for exhaust velocity while avoiding restrictions or tight-radius bends, preventing the manifold from being the limiting factor in the system.
• The A/R of your chosen turbine housing will be the significant restriction in this system.

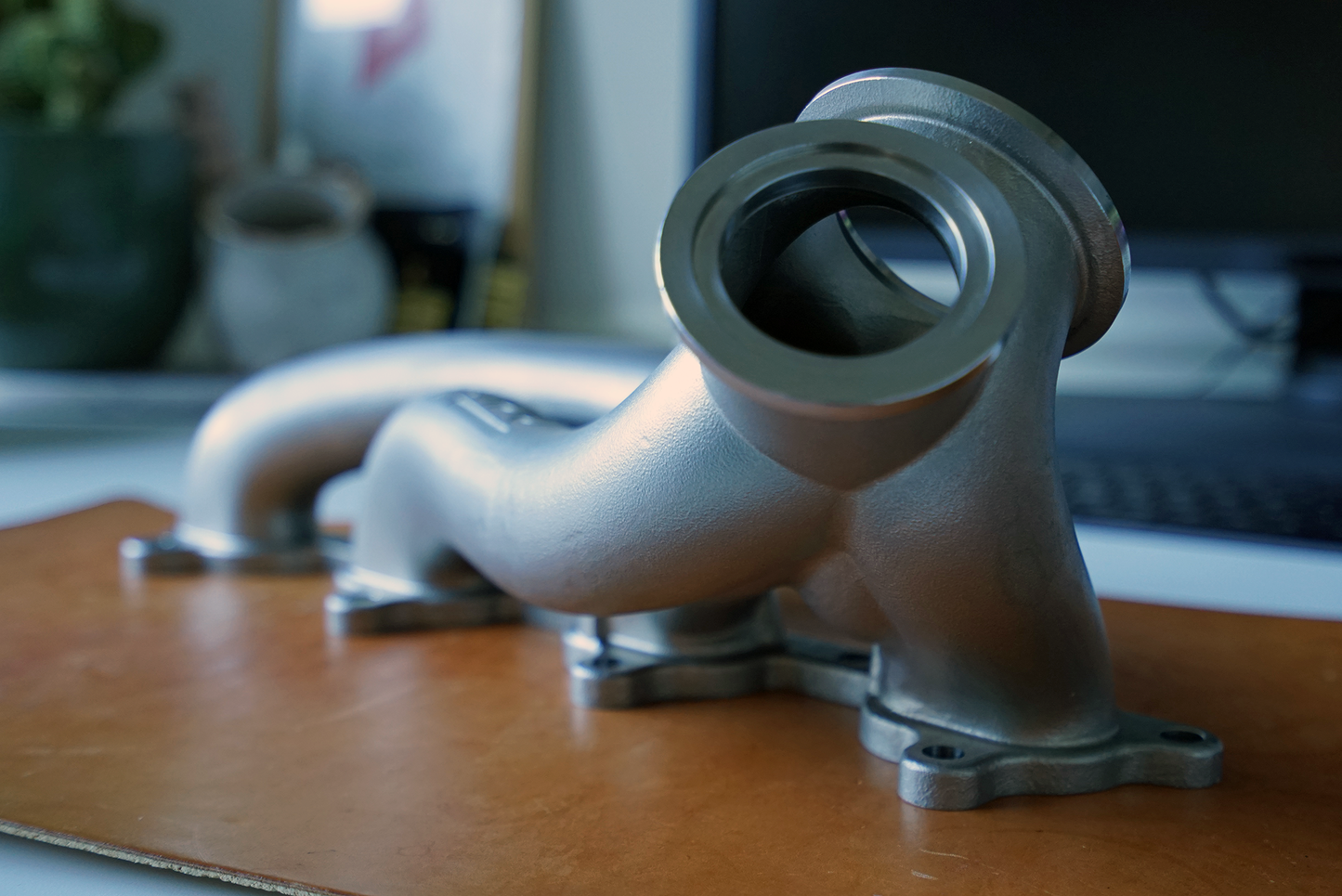

Turbo and Wastegate V-Band Fitments

• V-band configuration aligns with modern turbo technology future proofing your investment.

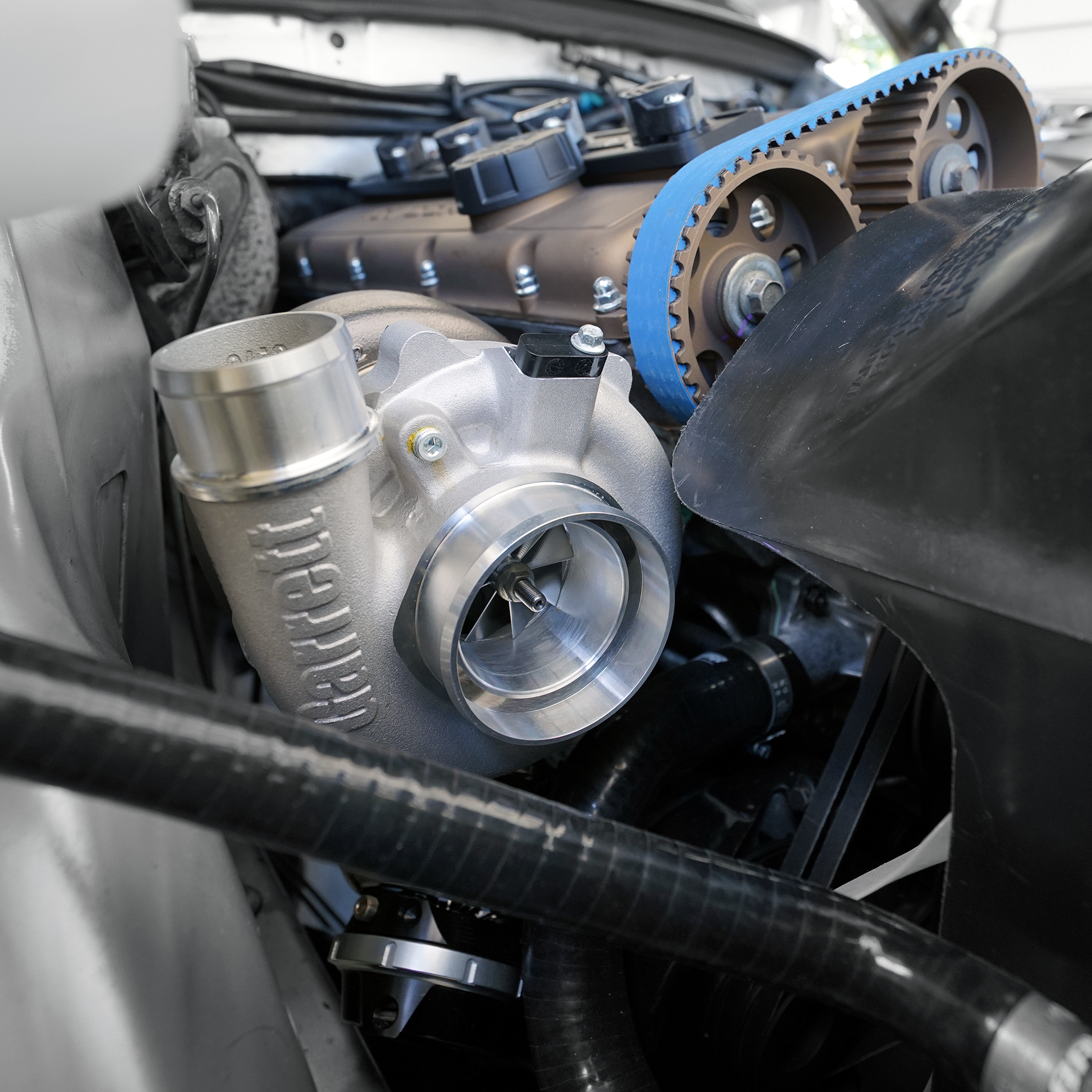

• Compatible with V band Garrett G25, G30, G35 turbos and the GTX30 and GTX35 series or any other turbo using this size flange (Turbosmart, Pulsar)
• Designed to accommodate the largest turbine housing in the G30 range (1.21 A/R) we can provide clearance measurements if you need a larger housing, email us.
• Features a Turbosmart Hypergate WG45 45mm wastegate flange with excelent priority, no boost creep issues here

Spatial Constraints

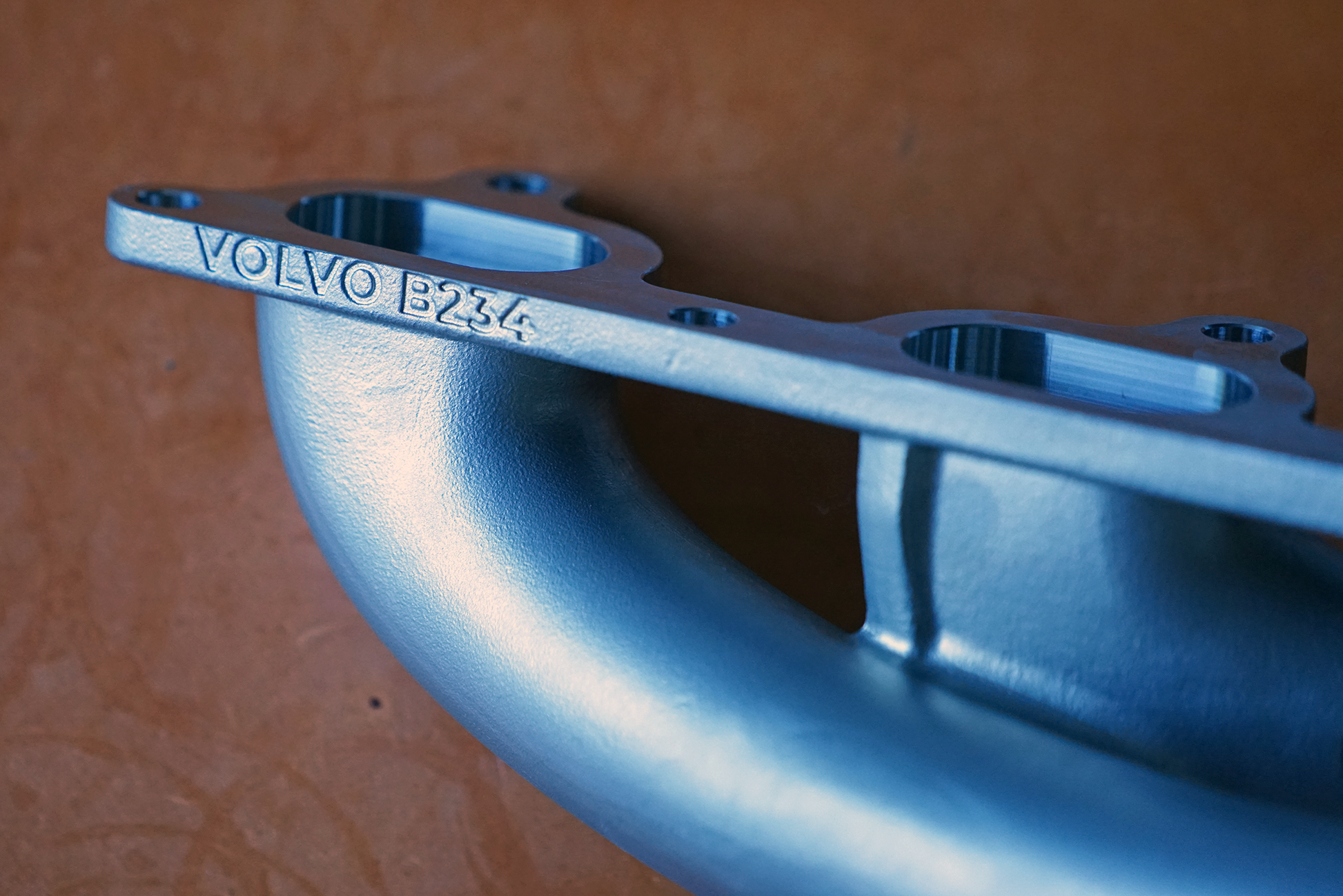

• Designed for the Volvo B230 engine with B234 16-valve head, utilizing original slanted engine mounts.

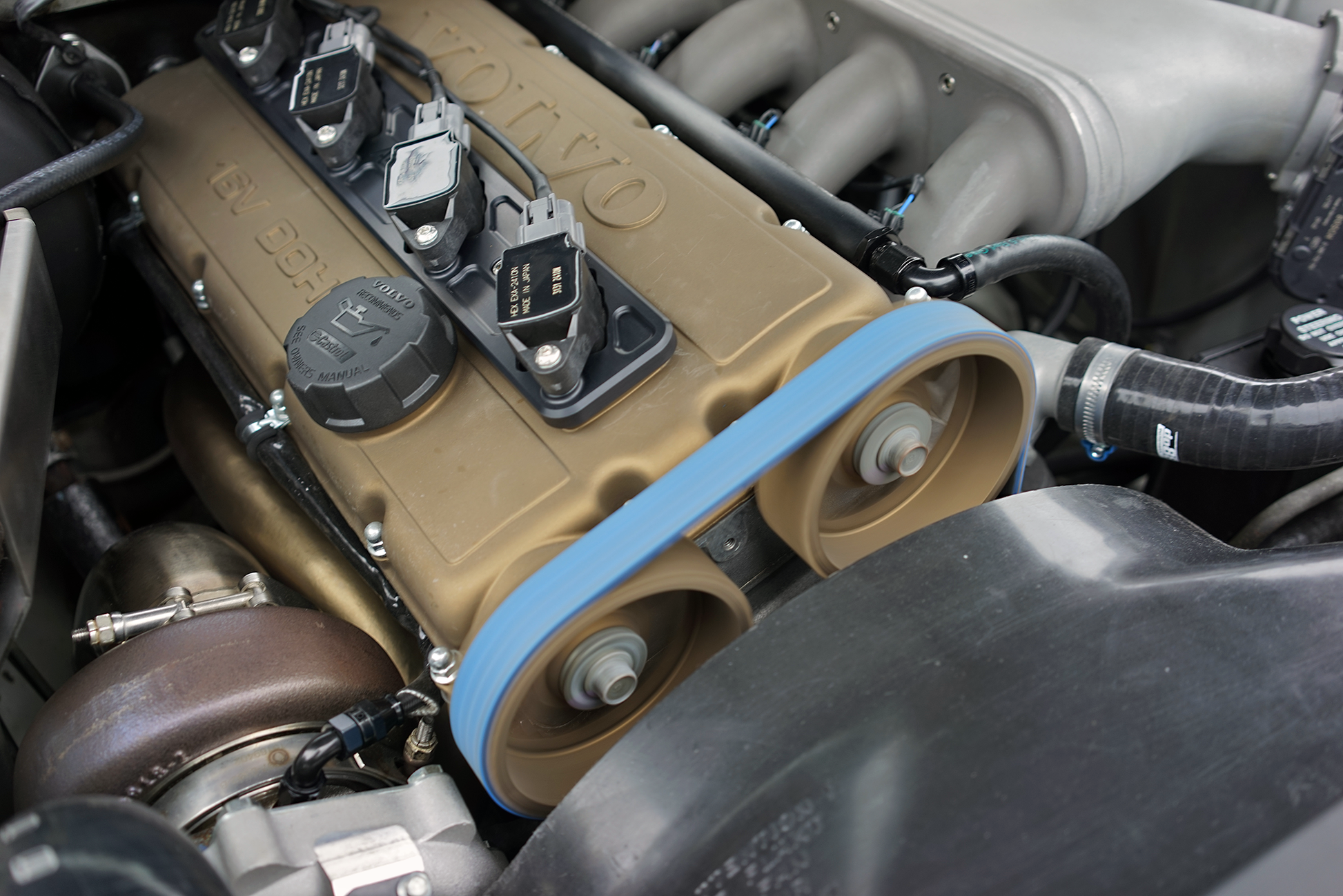

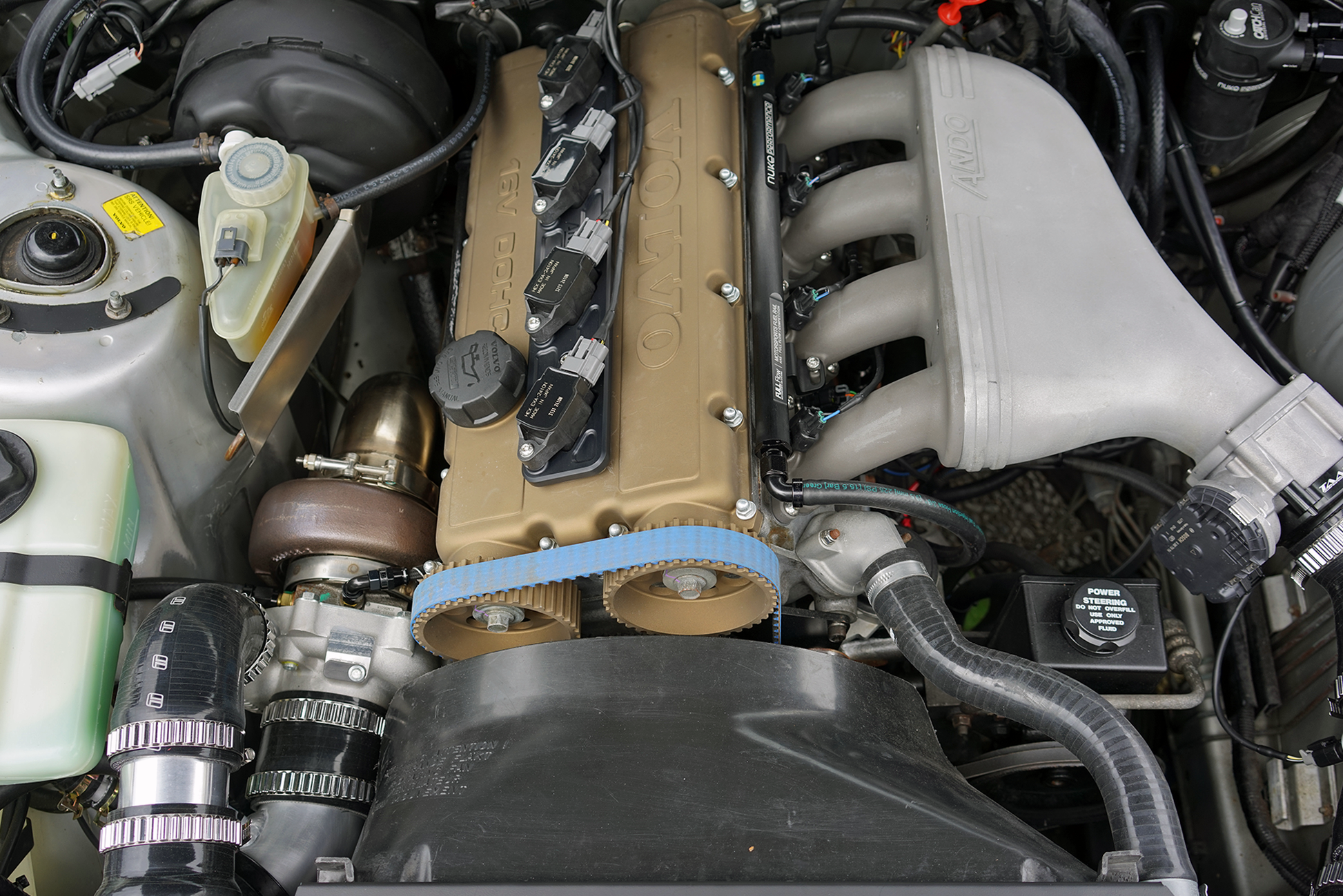

• Tested fitment in compact RHD Volvo 240 engine bays, addressing challenges like the strut tower, frame rail, steering linkage, brake booster, oil filter, and alternator.
• Accommodates both 75A alternators (Volvo 240) and 100A alternators (later Redblocks).
• Wastegate placement ensures optimal boost control while maintaining clearance from critical components.
• Compatible with larger engine bays like Volvo 740 and 940, also providing decent hood clearance for upright engines
