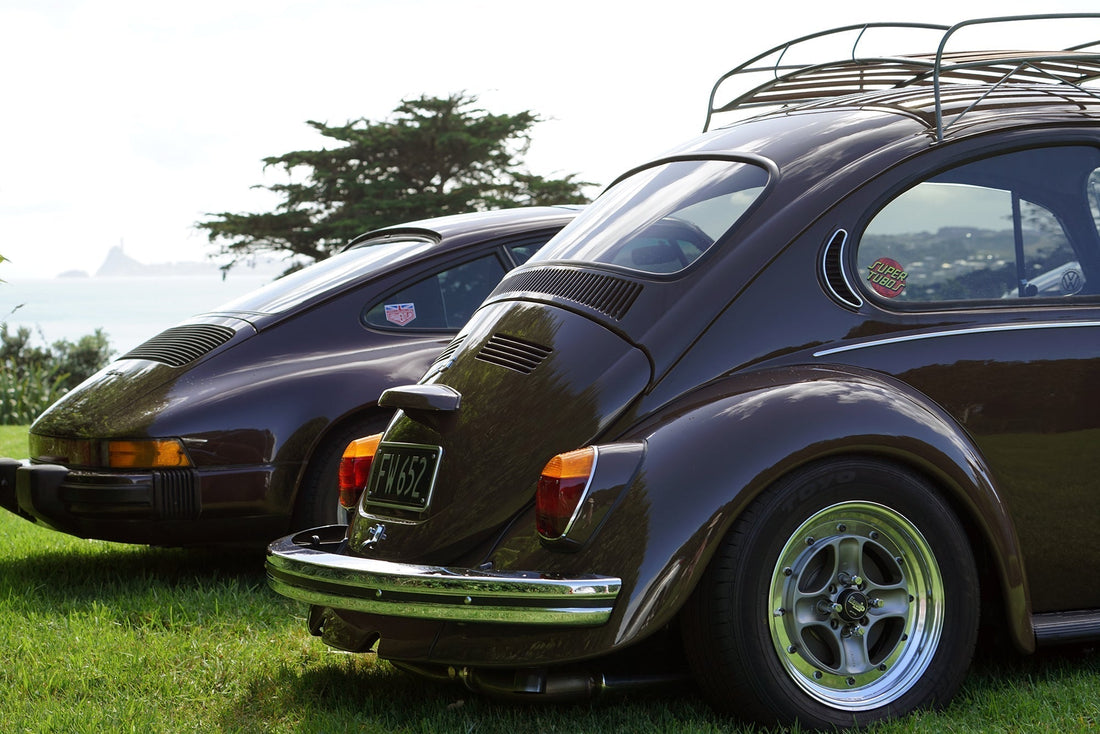

EFI Conversion: 1971 VW Super Beetle

The idea behind this EFI conversion was simple: create a weekend car that starts reliably and runs flawlessly, even after months of sitting idle. Carburetors were swapped out for a modern fuel injection system, breathing new life into the 1776cc engine in my 1971 Super Beetle. For any VW enthusiasts or anyone considering an EFI conversion, here’s a detailed breakdown of the journey.

This project was a deep dive into modernizing a classic, and I owe a lot of what I learned to HP Academy, an incredible online resource based in Queenstown, New Zealand. If you’re interested in performance tuning, I can’t recommend them enough.

ECU and Sensor Setup

For live street tuning and comprehensive monitoring, I needed a modern ECU with plenty of sensor inputs. After evaluating my options, I landed on the Link G4X Fury, a New Zealand-based ECU known for its reliability and excellent support. Here’s the sensor lineup I installed:

  • Throttle Position Sensor (TPS): Synced dual throttle bodies using a vacuum meter, similar to balancing carburetors.
  • Intake Air Temperature Sensor (IAT): Installed at the intake trumpet.
  • Crank Trigger (36-1 Reluctor Wheel): Machined into the back of the crank pulley.
  • Cam Sensor (Hall Type): Replaced the distributor for sequential ignition.
  • Bosch Knock Sensor: Mounted on the case under the crank pulley.
  • Combined Oil Temp and Pressure Sensor: Bosch unit for real-time monitoring.
  • Bosch Coolant Temp Sensor: Repurposed to measure air-cooled head temps by tapping into the cooling fins.
  • Bosch LSU4.9 Lambda O2 Sensor: Directly wired to the Link ECU for real-time air-fuel ratio monitoring.

Tuning the Engine

I opted for Alpha-N tuning, which uses throttle position as the primary load reference instead of manifold pressure. This worked perfectly for the dual throttle body setup. Here’s the ignition and fuel setup:

  • Ignition: LS2/LS7 coils mounted on the firewall with MSD leads and NGK Iridium IX plugs (two heat ranges colder).
  • Fuel System: EV1 Lucas injectors, a DW250iL pump with -6AN lines, and a fuel pressure regulator mounted under the car.

Many of these parts were sourced from Dubshop (US) for VW EFI conversions, with additional electronics from NZEFIand MSEL. I also installed a Sync Link cable throttle system, which offers smoother adjustments and pedal feel compared to traditional bar linkages.

All wiring was hidden under the rear seat, utilizing a Busman relay box controlled by the ECU. A Lithiumax battery providing stable, lightweight power.

Results and Refinements

After calibrating the fuel tables, I set up closed-loop lambda control, which dynamically adjusts the air-fuel ratio for optimal performance and economy. I fine-tuned the ignition timing on a dyno, using torque feedback to dial it in with precision.

The engine produced 70hp at 5000rpm and 110Nm from 2500rpm to redline, measured at the wheels on a roller dyno. While modest by modern standards, it’s a massive improvement for a 50-year-old platform and transforms the driving experience.

Lessons Learned and Improvements

The car is far more enjoyable to drive, it really comes alive and feels like a modern powerband. It starts effortlessly in any condition which is a huge improvement. However, if I were to do it again, I’d avoid the Lucas injectors they’re unstable at low loads, and the data provided is limited for volumetric modelled fuel tuning. I’d also modify the fuel tank to house an internal pump, even with rubber mounts and soundproofing, the external pump noise is noticeable.

Final Thoughts

This conversion transformed my Super Beetle into a more reliable, modernized machine while retaining its classic charm. For anyone tackling a similar project, I hope this provides some insight and inspiration.
