Volvo Specific Findings

Clutch Setup – RHD Compatibility

In a right-hand-drive 240, if you’re running a 16-valve head, you can’t use the factory clutch master cylinder, its position through the firewall interferes with the back of the head. That’s the only modification we needed to make in the engine bay for this engine setup.

To maintain a factory-like pedal feel without heavy fabrication, we found the BMW E36 clutch master cylinder (19 mm bore) to be the best option. It preserves the original pedal ratio and light effort, even with an upgraded clutch.

The cylinder mounts under the dash on a custom bracket, and the original clutch pedal tab needs to be cut off and re-welded to provide stroke in the right direction for the new bracket. We kept the geometry close to BMW’s design in our application to maintain smooth engagement.

The master cylinder still shares the original Volvo brake reservoir, the supply hose passes through the firewall to feed the BMW master cylinder. From there, a braided brake line connects to the factory hard line that originally attached to the Volvo master cylinder.

after a few revisions of our bracket due to flexing the firewall we incorporated a clutch stop to to prevent bottoming out the master cylinder.

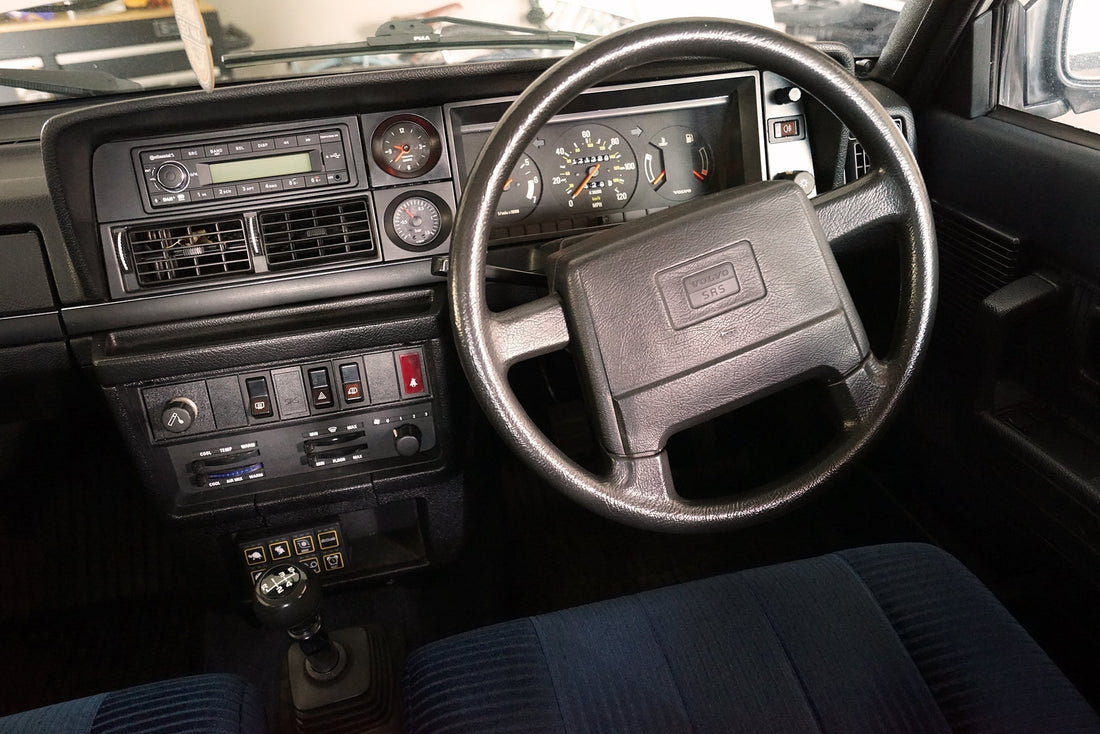

Factory Cluster Integration

We successfully managed to control the factory cluster using the Haltech Nexus R3. All of the warning lights are driven by digital outputs from the ECU, meaning we’ve retained full functionality of the oil pressure, check engine, and even repurposed the shift-up light as a knock warning indicator.

Each of these lights is switched to ground through the original cluster plug wiring, which makes it easy to configure in the Haltech software.

The tachometer is also controlled directly by the Haltech software, while the speedometer continues to operate from the differential as normal.

We used the Haltech to control the coolant temperature gauge, rather than keeping a separate factory temperature sensor and wiring, we used a pulse-width modulated (PWM) output from the Haltech which already has a coolant temp and pressure sensor connected. This output references a temperature table, allowing the ECU to drive the gauge directly. It requires a bit of trial and error, start by adjusting the duty cycle until the needle sits at the halfway mark (around 50 % on the gauge), then scale the table values from there for realistic response across the temperature range.

We also run the optional factory Volvo boost gauge under the clock, mainly for visual reference. All of the critical safety systems, coolant pressure, oil pressure, temperature limits, air-fuel ratio limits, and boost limits are handled by the ECU. This means there’s no need to watch gauges while driving; the Haltech manages all protections in real time.

If a fault occurs and the condition clears itself, you can reset fault codes instantly using the Haltech CAN keypad. We also have a dedicated data-logging button, pressing it immediately starts a log session so any issue can be reviewed later on a laptop.

Drive-By-Wire Throttle

Initially, we planned to keep the factory Volvo mechanical pedal and mount a Mercedes pedal position sensor from a W210 in the engine bay. That sensor was cable-actuated, so we thought it would integrate easily with the existing setup. However, once we began wiring it, we discovered one of the dual sensors inside was faulty and replacements were surprisingly expensive.

In the end, it was cheaper and simpler to switch to a Bosch Motorsport electronic throttle pedal. This allowed us to completely remove the cable system and the original Volvo pedal.

We designed and 3D-printed a mounting bracket to position the new pedal exactly where the original pedal face sat. It took three revisions to get the placement perfect balancing depth, spacing, and alignment so the pedal sits just behind the brake and in line both vertically and horizontally.

The final version, printed in carbon-fibre nylon, is strong enough and fits properly. The setup gives a smooth pedal feel and achieves 100 % throttle opening just before the pedal touches the carpet.

Ignition Backfeed Fix

This one took us a good three weeks to figure out, so hopefully we can save you a bit of pain.

When installing a standalone ECU in these cars, you’ll typically power it from the ignition switch from a wire that has 12 V in both the ON (run) and START positions. In our case, that was pin 15 on the Volvo ignition switch.

However, once the engine was running, turning the key off didn’t actually stop the engine. It would just keep running. After a lot of testing, we discovered that the ignition switch input to the Haltech ECU was still seeing a small amount of residual voltage after shutdown.

The culprit turned out to be the alternator warning-light circuit. Once the alternator was excited, it began back-feeding voltage through the dash bulb and into the ignition switch circuit. This meant that even with the key off, the ECU was still receiving power through that tiny feedback path enough to keep the engine alive.

The fix was simple once we knew what was happening:
install a diode in the wire between the alternator warning light and the alternator itself. The diode stops current from flowing backwards into the ignition switch once the key is turned off.

We installed it neatly in the engine bay it was easier to access there than behind the dash using closed-barrel crimps and SCL heat-shrink for a weather-sealed finish. Since fitting the diode, the problem has been completely solved, and the engine now shuts off cleanly every time.

Alternator Voltage Issue

Even though we were running the larger 100-amp Bosch alternator, when we started street tuning we noticed the voltage was a little low around 13.2 V once the alternator was excited.

That’s not terrible, but it’s below what you’d expect for a healthy charging system, especially with modern ECUs and sensors that prefer a solid 14 V supply.

These Bosch alternators use a replaceable voltage regulator, and they’re known to get a bit lazy as they age. The fix was simple: we upgraded to a slightly higher-voltage regulator, which brought the output back where it should be.

After the upgrade, we now see a consistent 13.8–14 V under normal driving conditions. It’s still a touch lower than what newer alternators produce, but much closer to the ideal 14 V mark — and we’re happy with that.

Fuel System and Wiring Upgrades

The factory Volvo 240 fuel system uses a low-pressure in-tank pump feeding a high-pressure pump and filter assembly mounted under the car. It works fine for stock power levels, but it’s overly complicated and restrictive once you start chasing serious horsepower.

We simplified the system completely by removing the external high-pressure pump and upgrading the in-tank pump to a DeatschWerks DW65. This pump easily supports the power we’re making but did expose a few hidden issues.

Fuel Line and Hanger Modifications

As soon as we replaced the pump, the original fuel lines began to crack they were simply too old. To modernize the setup, we welded a Dash-8 AN steel fitting to the the feed line. From there:

• Feed: Dash-8 AN line from the pump to a fuel filter in the factory location, where it reduces to Dash-6 AN, continuing all the way to the fuel rail.

• Return: Dash-6 AN line from the fuel pressure regulator back to the original hard line under the car, then returning through the stock path to the hanger.

This did prove capable of supporting this engine in the end.

Fuel Pump Clearance

When fitting the DW65, we found that the factory hanger positions the pump sock directly on the bottom of the tank. After several test-fits while diagnosing wiring issues, we noticed the sock filter was partially blocked from sitting flush against the tank floor.

To fix this, we raised the pump about 10 mm up the hanger, which gives the sock just enough clearance to breathe without restricting flow. It’s a small but worthwhile change to make if you’re fitting an aftermarket pump, especially on older tanks that might have debris at the bottom.

Wiring and Voltage Drop Issues

The factory fuel-pump wiring in these cars is extremely light-duty. The original 12 V supply wire runs through a potted connector shown in the photo, and the pump is grounded through the hanger, which in turn relies on the tank and body for return path.

During tuning, we noticed fuel pressure dropping under boost, which turned out to be a voltage drop at the pump. To fix it, we bypassed all factory wiring and powered the pump directly from the Haltech Nexus R3’s built-in PDM output. The Nexus can easily supply up to 25 A, so we ran a dedicated power feed straight from the PDM to a bulkhead connector on the top of the hanger, then directly to the pump.

For grounding, instead of relying on the hanger, we added a 12-gauge ground wire to a second bulkhead fitting, then ran that to a solid chassis ground point in the boot, near the rear seatbelt mounts.

Battery Ground Fix

Even after upgrading the wiring, we were still seeing slight voltage drop and lack of fuel pressure under load. Eventually we discovered that the factory negative battery strap to the chassis is incredibly thin. After cleaning the contact points and installing a heavy-gauge ground strap, voltage stabilized and fuel pressure became rock-solid.

Fuel Pressure Monitoring and Safety

We do have a fuel-pressure sensor wired to the haltech which is how we could see we had a problem. The ECU constantly monitors this and triggers safety limits if fuel pressure drops below target. In addition, the wideband O₂ sensor has a lean protection limit set at 0.95 lambda under boost — so if the mixture starts to go lean, the ECU will save the engine.

These layers of protection give us confidence that even if a wiring fault, pump issue, or restriction were to occur, the engine is protected.

Since making these changes, the fuel system has been completely reliable. The factory Volvo 240 tank includes a circular internal baffle, so even during hard driving, fuel slosh hasn’t been a problem, as long as the tank isn’t run near empty.

Engine Mounts and Chassis Bracing

According to the internet, the factory Volvo 240 rubber engine mounts won’t survive under a high-power turbo setup, something we wanted to avoid. We upgraded to the Classic Swede green “extra-strong” engine mounts.

They do introduce a bit of noise, vibration, and harshness (NVH), but it’s manageable. Some of it likely comes from the higher compression ratio and the natural harmonics of the 16-valve head.

The NVH wasn’t noticeable until we started adding chassis braces. We fitted a full set from IPD including the upper strut-to-firewall braces and the lower subframe braces.

Immediately after installing the lower braces, the vibration inside the cabin became unbearable. On the road, steering response was noticeably sharper and front-end feedback improved so the lower braces definitely work but the trade-off in comfort was huge.

After some testing, we removed the lower braces only and kept the upper strut-to-firewall braces installed. The vibration disappeared, the car regained its street comfort, and the steering still feels more connected than stock.

What we learned from this is that the lower chassis braces transfer vibration directly from the engine mounts (bolted to the subframe) straight into the cabin. It’s worth keeping in mind if you’re running firmer mounts.

That said, the engine doesn’t move at all under load with the Classic Swede mounts, so they absolutely do their job. It really comes down to preference:

• If you want your engine to move less and can live with a little chassis flex, go with firmer mounts and skip the lower braces.

• If you prefer the feel of a stiffer front end and are happy to keep softer rubber mounts, you can add the lower braces for improved steering precision.

In our car, we’re running Adjustable Koni Sport shocks in the front, firmed up slightly to handle the extra weight of the 16-valve conversion. Combined with the upper chassis bracing, the car feels balanced.

Hopefully this Blog helps someone with their build. We will add to this over time if we come across anything else worth sharing.
